Dyno Sheets

Head Hoggers, LLC

Our Dyno Sheets below show the following:

• 95″ Kit Setup for Torque
• 95″ Kit
• 103″ Setup for Torque
• 107″ Setup for Bagger
• 107″ Horsepower Setup for Dyna
• 117″ Horsepower Setup for Dyna
• 124″ Setup for Bagger

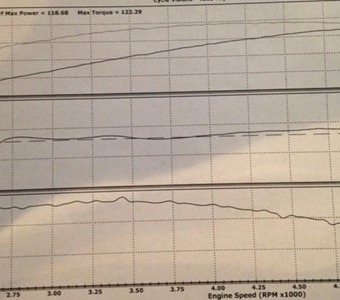

Head Hoggers 95″ Setup for Torque

• 95″ CP pistons 10.7:1 compression
  Woods Performance TW400G cams
  Head Hoggers stage 3 heads
  Head Hoggers ported 54mm throttle body
  Arlen”s stage1 air cleaner
  Rinehart true dual exhaust
  Tuned by Dr. Jim

95 Setup for Torque

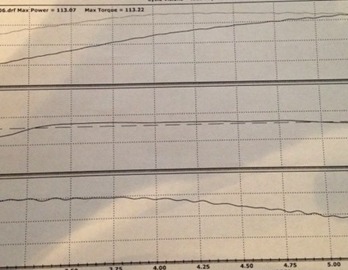

Head Hoggers 95″ kit

• 95″ Wiseco 10.3:1 compression
  Woods Performance TW-8G cams
  Head Hoggers stage 2 heads
  Mukuni 42mm carb
  Arlen”s stage 1 air cleaner
  D&D fatcat 2-1 exhaust
  Tuned by Dr. Jim

95 Kit

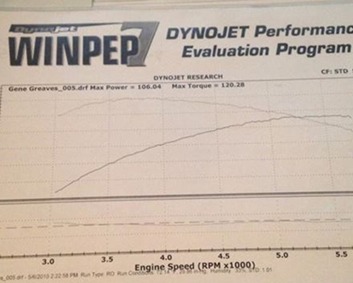

Head Hoggers 103″ Setup for Torque

• 103″ stock flat top pistons
  Woods Performance TW400G Cams
  Head Hoggers stage 2 heads
  Head Hoggers ported stk FBW throttle body
  Cycle Visions moflow air cleaner
  Rinehart true dual exhaust
  Tuned by Dr. Jim

103 Setup for Torque

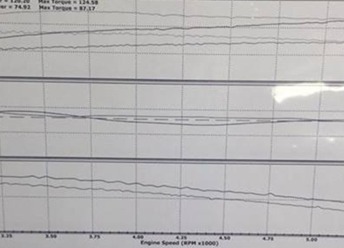

Head Hoggers 107″ Torque Setup for Bagger

• 107″ CP pistons 10.4:1 comp
  Woods Performance TW777 cams
  Head Hoggers stage 3 heads
  Head Hoggers ported stk FBW throttle body
  Cycle Visions moflow air cleaner
  True dual Bub 7 exhaust
  Tuned by Dr. Jim
  ( Graph shows a before and after run )

107 Torque for Bagger

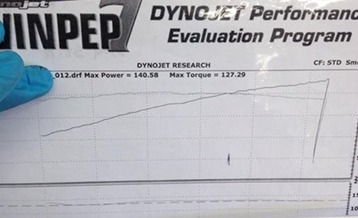

Head Hoggers 107″ Horsepower Kit for Dyna

• 107″ CP pistons 11.3:1 comp
  Woods Performance TW9FG cams
  Head Hoggers stage 4 heads
  Head Hoggers ported 57mm throttle body
  Arlen’s stage 2 air cleaner
  D&D Fatcat with big boar baffle
  Tuned by Dr. Jim

107 HP for Dyna

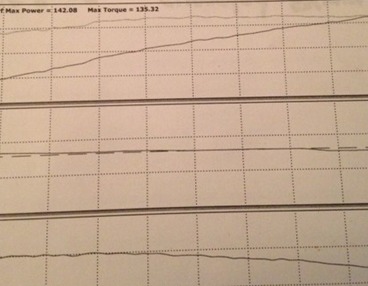

Head Hoggers 117″ Horsepower Kit for Dyna

• 117″ S&S pistons 11.2:1 compression\
  Woods Performance TW9FG-7 cams
  Head Hoggers stage 2 heads S&S
  Head Hoggers ported 58mm HPI throttle body
  RSD air cleaner
  D&D fatcat with Big Boar Baffle
  Tuned by Dr. Jim

117 HP Setup

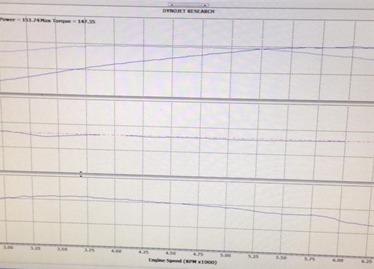

Head Hoggers 124″ Horsepower Setup for Bagger

• 124″ S&S pistons 11.6:1 compression
  Woods Performance TW68G cams
  Head Hoggers stage 3 SE 110 heads
  Head Hoggers ported 58mm Throttle body
  D&D boarzilla exhaust
  Tuned by Dr. Jim

124 HP Setup
